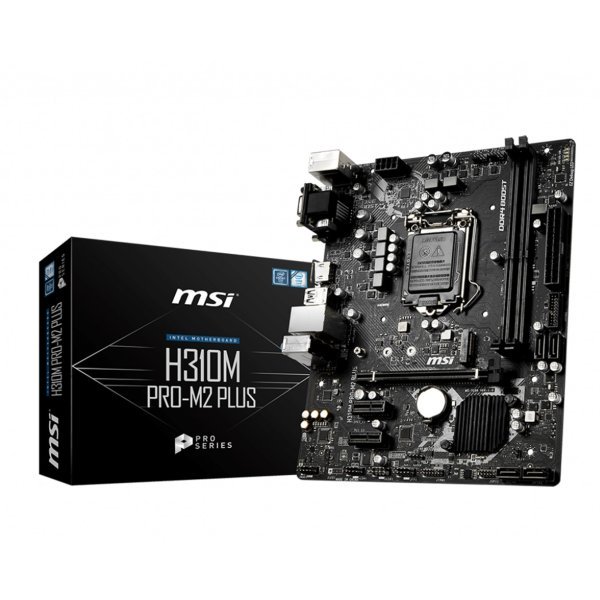

Placa base msi intel h310m – pro – m2 plus socket 1151 ddr4 x2 2666mhz max 32gb d – sub hdmi dvi – d matx

Processor
supports 8th gen intel® core processors – pentium® gold and celeron®
processors for socket lga1151
see supported processors
chipset
intel® h310 chipset1
this chipset is me11 firmware based and doesn’t feature sda3.0.
memory
2 x ddr4 memory slots – support up to 32gb
supports ddr4 2666 – 2400 – 2133 mhz
dual channel memory architecture
supports non – ecc – un – buffered memory
supports intel® extreme memory profile (xmp)
see supported memory
slots
1 x pcie 3.0 x16 slot
2 x pcie 2.0 x1 slots
onboard graphics
1x vga port – supports a maximum resolutión of 2048×1536@50hz –
2048×1280@60hz – 1920×1200@60hz1
1x dvi – d port – supports a maximum resolutión of 1920×1200@60hz1
1x hdmi port 1.4 – supports a maximum resolutión of 4096×2160@30hz1
supports up to 2 displays simultaneously
storage
intel® h310 chipset
4 x sata 6gb – s ports1
1 x m.2 slot (key m)
support up to pcie 2.0 x4 and sata 6gb – s
supports 2242 – 2260 – 2280 storage devices
sata1 port will be unavailable when an m.2 sata ssd is installed in the m2_1
slot.
usb
intel® h310 chipset
4 x usb 3.1 gen1 (superspeed usb) ports (2 type – a ports on the back panel –
2 ports available through the internal usb connectors)
6 x usb 2.0 (high – speed usb) ports (4 type – a ports on the back panel – 2 ports
available through the internal usb connectors)
audio
realtek® alc887 codec
7.1 – channel high definitión audio
lan
1 x intel i219 – v gigabit lan controller
internal connectors
1 x 24 – pin atx main power connector
1 x 8 – pin atx 12v power connector
4 x sata 6gb – s connectors
1 x usb 3.1 gen1 connector (supports additiónal 2 usb 3.1 gen1 ports)
1 x usb 2.0 connector (supports additiónal 2 usb 2.0 ports)
1 x 4 – pin cpu fan connector
1 x 4 – pin system fan connector
1 x front panel audio connector
1 x seríal port connector
2 x front panel connectors
1 x tpm module connector
1 x chassis intrusión connector
1 x clear cmos jumper
back panel ports
ps – 2 combo
vga
hdmi
usb 3.1 gen1
lan
hd audio connectors
dvi – d
usb 2.0
dimensións
9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
m – atx form factor
mounting
6 mounting holes
operating system
support for windows® 10 64 – bit
