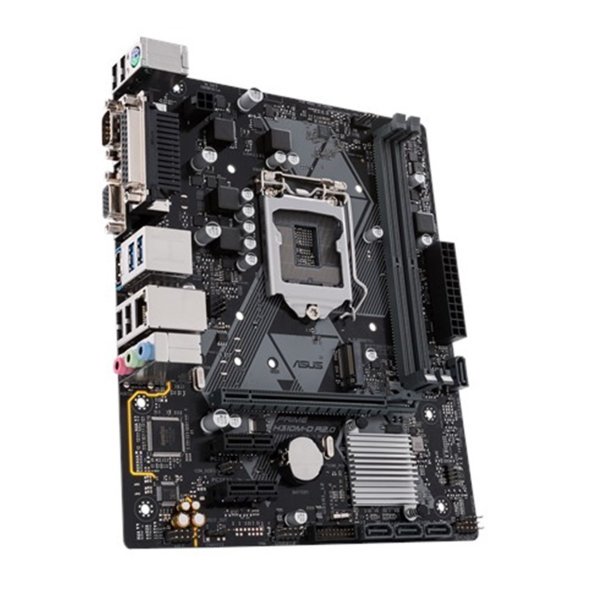

Placa base asus intel prime h310m – d r2.0 socket 1151 ddr4 x 2 2666mhz max 32gb d – sub hdmi matx

Cpu
intel® socket 1151 9th – 8th gen intel® core – pentium® gold and celeron®
processors
supports intel® 14 nm cpu
supports intel® turbo boost technology 2.0
* the intel® turbo boost technology 2.0 support depends on the cpu types.
* refer to www.asus.com for cpu support list
chipset
intel® h310
memory
2 x dimm – max. 32gb – ddr4 2666 – 2400 – 2133 mhz non – ecc – un – buffered
memory
dual channel memory architecture
supports intel® extreme memory profile (xmp)
* refer to www.asus.com for the memory qvl (qualified vendors lists).
* the maximum memory frequency supported varies by processor
** ddr4 2666mhz and higher memory modules will run at max. 2666mhz on
intel® 8th gen. 6 – core or higher processors.
graphic
integrated graphics processor – intel® hd graphics support
multi – vga output support : hdmi – d – sub ports
– supports hdmi 1.4b with max. resolutión 4096 x 2160 @ 24 hz – 2560 x 1600
@ 60 hz
– supports d – sub with max. resolutión 1920 x 1200 @ 60 hz
maximum shared memory of 1024 mb (for igpu exclusively)
supports intel® intru 3d – quick sync video – clear video hd technology –
insider
expansión slots
1 x pcie 3.0 – 2.0 x16 (x16 mode – gray)
2 x pcie 2.0 x1
storage
intel® h310 chipset :
1 x m.2 socket 3 – – with m key – type 2242 – 2260 – 2280 storage devices support
(both sata & x2 pcie mode)*1
4 x sata 6gb – s port(s) – gray –
lan
realtek® rtl8111h – 1 x gigabit lan
asus lan guard
audio
realtek® alc887 8 – channel high definitión audio codec
– supports : jack – detectión – front panel jack – retasking
audio feature :
– led – illuminated design – brighten up your build with the gorgeous illuminated
audio trace path.
– audio shielding: ensures precisión analog – digital separatión and greatly
reduced multi – lateral interference
– dedicated audio pcb layers: separate layers for left and right channels to
guard the quality of the sensitive audio signals
– premium japanese audio capacitors: provide warm – natural and immersive
sound with exceptiónal clarity and fidelity
* choose the chassis with hd audio module in front panel to support 8 –
channel audio output.
usb ports
intel® h310 chipset :
4 x usb 3.1 gen 1 up to 5gbps port(s) (2 at back panel – blue – type – a – 2 at mid –
board)
intel® h310 chipset :
6 x usb 2.0 – 1.1 port(s) (4 at back panel – – 2 at mid – board)
special features
asus 5x protectión iii :
– asus safeslot core: fortified pcie slot prevents damage
– asus languard: protects against lan surges – lightning strikes and static –
electricity discharges!
– asus overvoltage protectión: world – class circuit – protecting power design
– asus stainless – steel back i – o: 3x corrosión – resistance for greater
durability!
– asus digi+ vrm: 4 phase digital power design
asus optimem
– optimem (improved ddr4 stability)
asus epu :
– epu
asus exclusive features :
– ai suite 3
– ai charger
– pc cleaner
asus quiet thermal solutión :
– stylish fanless design heat – sink solutión
– asus fan xpert
asus ez diy :
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
asus q – design :
– asus q – dimm
m.2 onboard(the latest transfer technologies with up to 10gb – s data transfer
speeds)
back i – o ports
1 x ps – 2 keyboard – mouse combo port(s)
1 x d – sub
1 x hdmi
1 x lan (rj45) port(s)
2 x usb 3.1 gen 1 (blue) type – a up to 5gbps
4 x usb 2.0
1 x com port(s)
1 x lpt port
3 x audio jack(s)
internal i – o ports
1 x usb 3.1 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb 3.1
gen 1 port(s) (19 – pin)
1 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
1 x m.2 socket 3 with m key – type 2242 – 2260 – 2280 storage devices support
(both sata & x2 pcie mode)
4 x sata 6gb – s connector(s)
1 x cpu fan connector(s) (1 x 4 – pin)
1 x chassis fan connector(s) (1 x 4 – pin)
1 x s – pdif out header(s)
1 x 24 – pin eatx power connector(s)
1 x 4 – pin atx 12v power connector(s)
1 x front panel audio connector(s) (aafp)
1 x clear cmos jumper(s)
1 x system panel connector
1 x speaker connector
accessories
user’s manual
i – o shield
2 x sata 6gb – s cable(s)
1 x m.2 anchor
1 x scd
manageability
wol by pme – pxe
operating system
windows® 10 64 – bit
form factor
matx form factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
